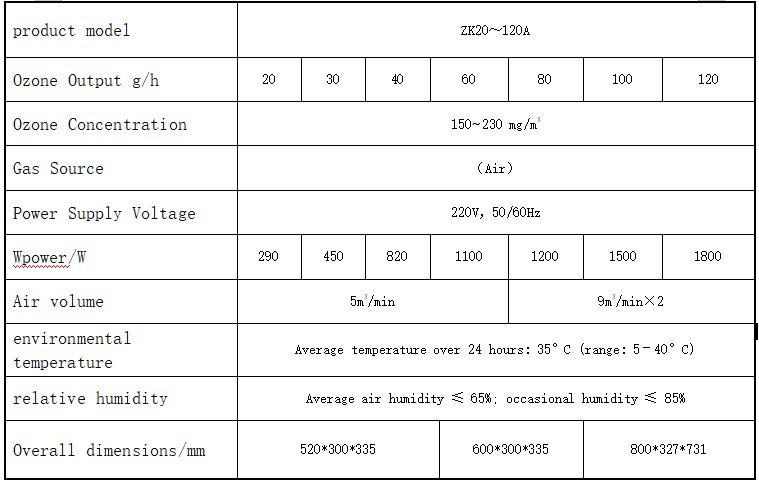

Key Specifications

Ozone Generator for Air Sterilization


Product Description

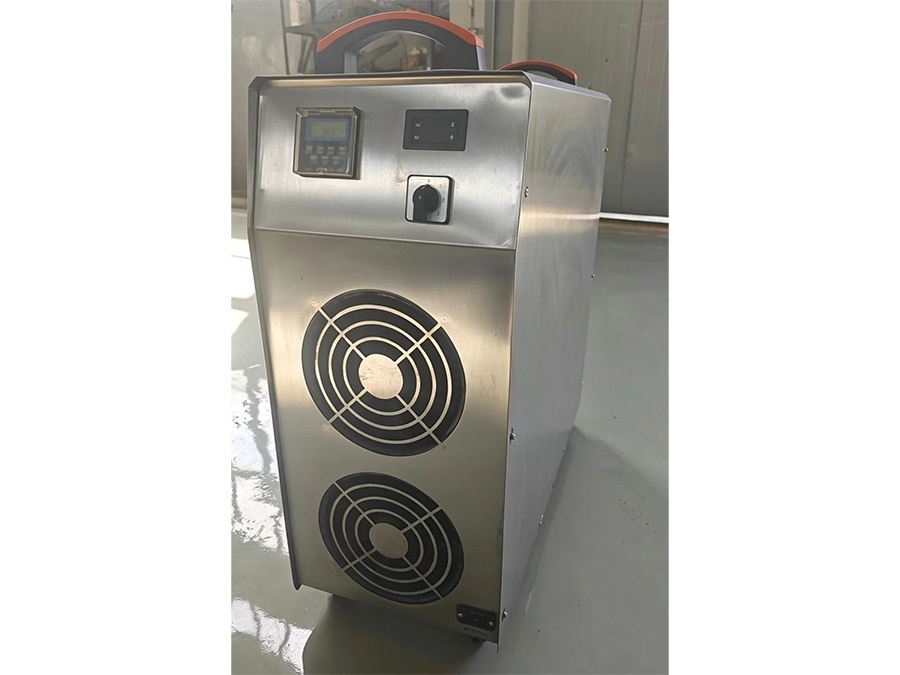

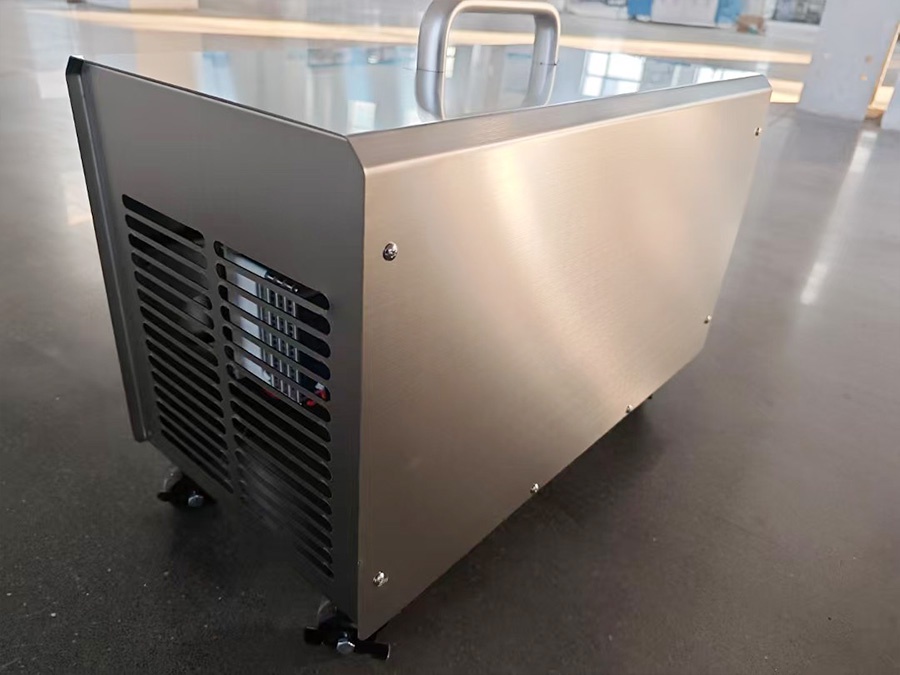

Ozone Generator for Air Sterilization

The ozone principle is applied to sterilize indoor air and remove peculiar odors. Microcomputercontrol, one-button start, instant release of ozone, and killing of various bacteria in the corresponding space.

Ozone Sterilization and Disinfection Mechanism

Ozone kills viruses by directly destroying ribonucleic acid or deoxyribonucleic acid. As for killingmicroorganisms such as bacteria and molds, ozone first acts on the cell membrane, causingdamage to the composition of cell membrane, resulting in metabolic disorders and inhibiting theirgrowth; ozone continues to penetrate and destroy the lipoproteins and lipopolysaccharides insidethe membrane, changes cell permeability, and leads to cell lysis and death. Moreover, sterilizationand disinfection are thorough, without dead corners, and have killing effects on various bacteriaand viruses, with a killing rate reaching more than 99%. The sterilization and disinfectioncapability of ozone is more than 5 times that of ultraviolet rays, and compared with other chemical agents, there is no chemicalresidue.

Ozone Deodorization Mechanism

Ozone has excellent performance in removing peculiar odors. Relying on its strong oxidizingproperty, it can rapidly decompose organic or inorganic substances that produce odors and othersmells. The main components of odors are amine R3N, hydrogen sulfide H2S, methyl mercaptanCH3SH, etc. Ozone oxidizes and decomposes them, and the reaction formulas are as follows:

R3 N+O3 → R3 N-O+O2

H2S+O3 → S+H2O+O2 → SO2+H2O

CH3SH+O3 → [CH3-S-S-CH3] → CH3-SO3 H+O 2


Application Fields

1790260843961757445899747328.jpg@!w400


Project Cases

Factory Showcase

  • 工厂实景21
  • 工厂实景22
  • 工厂实景23
  • 工厂实景24
  • 工厂实景25
  • 工厂实景26
  • 工厂实景27
  • 工厂实景28
  • 工厂实景29

Certifications

  • 山东卓康环保设备有限公司-环境管理体系证书_02 拷贝
  • 山东卓康环保设备有限公司-职业健康安全管理体系证书_02 拷贝
  • 山东卓康环保设备有限公司-质量管理体系证书_02 拷贝

FAQ

A:

Equipped with intelligent PLC touch screen, automatic operation and one-key start/stop, simple for workers to use. We provide English operation manuals, installation videos and online technical guidance.

A:

The machine only needs standard power supply, water source and ventilation environment. It is floor-mounted, easy to install and no complicated construction is required.

A:

Complete supporting accessories are optional: oxygen generator, air dryer, filter system, tail gas destructor, PLC intelligent control cabinet and remote monitoring module.

A:

Yes. We can customize ozone output, concentration, cabinet size, control mode and fully automatic system solutions according to your water flow, water quality and on-site environment.

A:

It is widely applied in municipal tap water disinfection, industrial wastewater treatment, swimming pool water circulation, aquaculture water purification, printing and dyeing wastewater, reclaimed water reuse and chemical plant sterilization.

A:

Yes. All industrial-grade models support 24/7 continuous stable operation. Each machine passes strict aging tests before delivery to ensure low failure rate for long-term operation.

A:

Our ozone generator adopts high-efficiency enamel dielectric discharge technology. It converts oxygen/air into high-purity ozone through high-voltage ionization, with stable output, low attenuation and long continuous working life.

A:

We support full-range specifications from small 10g/h to large industrial tonnage models. Custom ozone concentration and output are available for different project demands.

A:

Standard models adopt water cooling, which ensures more stable ozone output and better heat dissipation for 24-hour continuous operation. Air cooling type is optional for small machines.

A:

Yes. We can provide detailed English product datasheets, parameter lists, project cases and customized quotation according to your actual needs.

A:

Standard models have stock and can be delivered quickly. Customized models take 7-15 working days according to different configurations.

A:

Our ozone generators have passed CE certification and meet EU industrial safety standards. We support third-party inspection for customer projects.

A:

We provide 1-year full machine warranty and lifelong technical support. Core components enjoy longer service guarantee. Damaged parts can be provided with preferential replacement.

A:

We provide 24-hour online after-sales service. Most software and operation problems can be solved remotely. For hardware problems, we will provide replacement parts and professional technical guidance.
