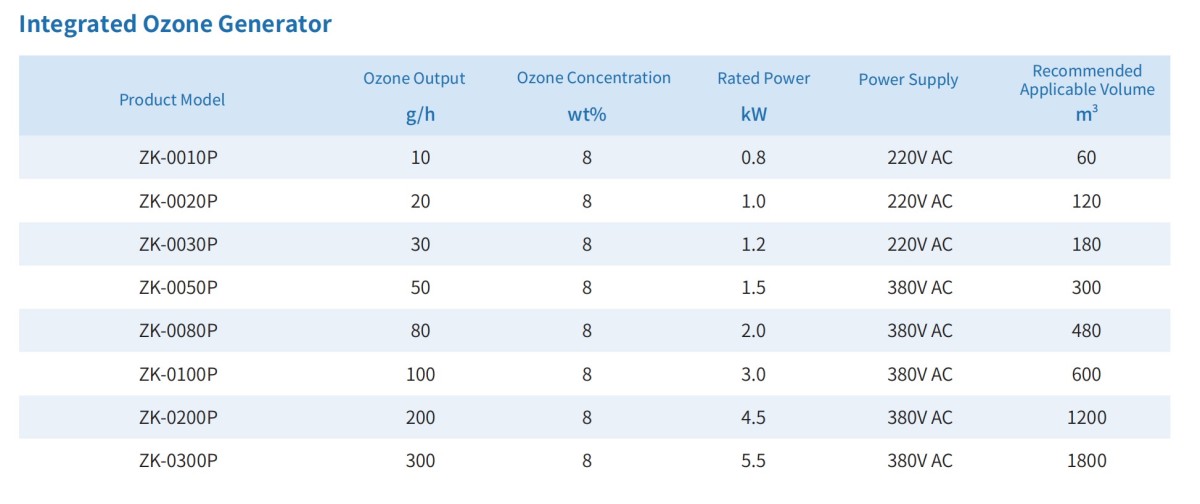

Key Specifications
Product Description
Ozone can quickly eliminate bacteria, fungi, and viruses in water, efficiently removing urine, amino acids, and chlorine-resistant microorganisms, and is safe with no by-products. The ZK series ozone generator is suitable for large water parks, Olympic swimming pools, and medium-to-small pools in hotels for disinfection. In terms of bactericidal capacity, it is over 2000 times more effective than chlorine. Using ozone for swimming pool water disinfection can decolorize and deodorize, without issues of residue or secondary pollution. It avoids the harm caused by chlorine disinfection to eyes, skin, and hair quality. It also has broad-spectrum and high-efficiency characteristics.
Product characteristics
1. The complete system adopts intelligent self-repairing ozone generating units with tubular discharge chamber structure, featuring reliable, stable and safe operation.
2. Equipped with PLC control for automatic operation, one-key start-stop function, easy operation and long service life.
3. Fitted with waterproof backflow prevention device, off-gas destruction unit, gas-water separator and oxygen-enriched gas supply unit for high safety and reliability.
4. The ozone generation system uses dry, clean and regenerable gas source. The ozone chamber adopts water cooling method to ensure stable equipment operation.
5. The ozone unit adopts V/F mode and FPM intelligent inverter regulation technology, with functions of automatic tracking, fault analysis, automatic protection and automatic pulse width modulation.
Application Fields
Project Cases
Factory Showcase
Certifications
FAQ
Equipped with intelligent PLC touch screen, automatic operation and one-key start/stop, simple for workers to use. We provide English operation manuals, installation videos and online technical guidance.
The machine only needs standard power supply, water source and ventilation environment. It is floor-mounted, easy to install and no complicated construction is required.
Complete supporting accessories are optional: oxygen generator, air dryer, filter system, tail gas destructor, PLC intelligent control cabinet and remote monitoring module.
Yes. We can customize ozone output, concentration, cabinet size, control mode and fully automatic system solutions according to your water flow, water quality and on-site environment.
It is widely applied in municipal tap water disinfection, industrial wastewater treatment, swimming pool water circulation, aquaculture water purification, printing and dyeing wastewater, reclaimed water reuse and chemical plant sterilization.
Yes. All industrial-grade models support 24/7 continuous stable operation. Each machine passes strict aging tests before delivery to ensure low failure rate for long-term operation.
Our ozone generator adopts high-efficiency enamel dielectric discharge technology. It converts oxygen/air into high-purity ozone through high-voltage ionization, with stable output, low attenuation and long continuous working life.
We support full-range specifications from small 10g/h to large industrial tonnage models. Custom ozone concentration and output are available for different project demands.
Standard models adopt water cooling, which ensures more stable ozone output and better heat dissipation for 24-hour continuous operation. Air cooling type is optional for small machines.
Yes. We can provide detailed English product datasheets, parameter lists, project cases and customized quotation according to your actual needs.
Standard models have stock and can be delivered quickly. Customized models take 7-15 working days according to different configurations.
Our ozone generators have passed CE certification and meet EU industrial safety standards. We support third-party inspection for customer projects.
We provide 1-year full machine warranty and lifelong technical support. Core components enjoy longer service guarantee. Damaged parts can be provided with preferential replacement.
We provide 24-hour online after-sales service. Most software and operation problems can be solved remotely. For hardware problems, we will provide replacement parts and professional technical guidance.
