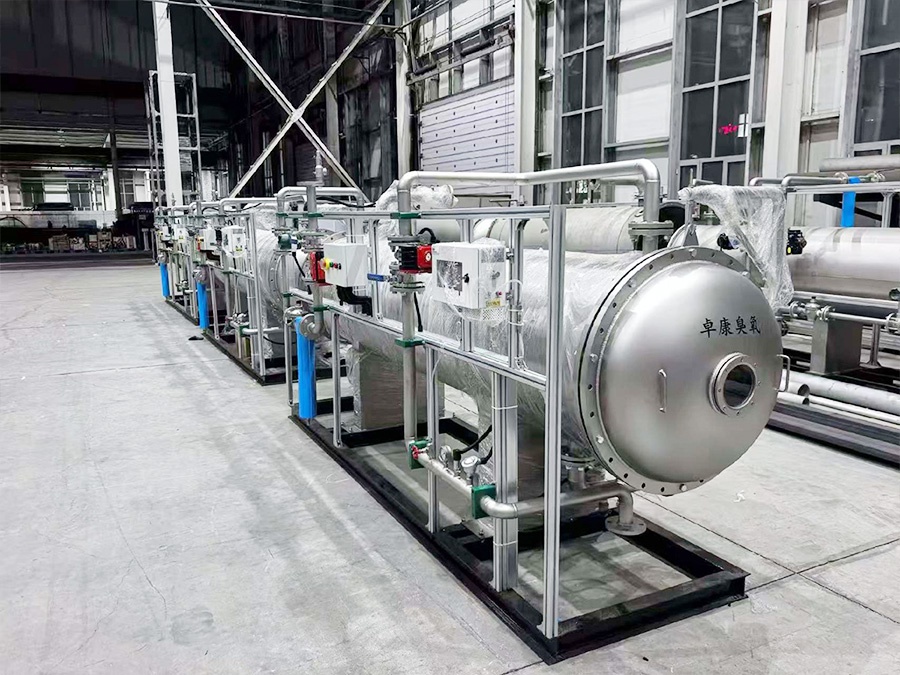

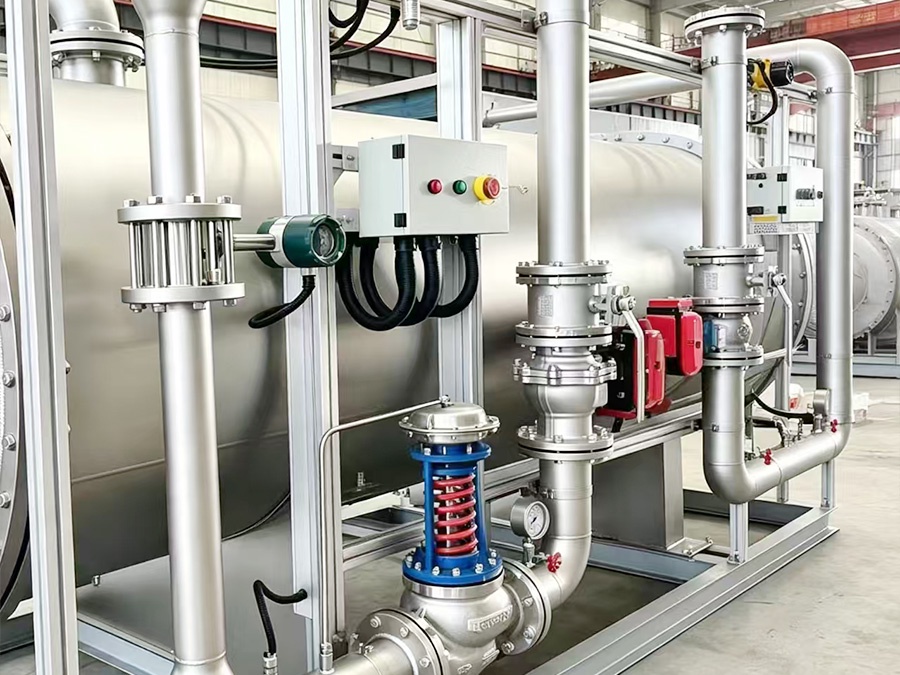

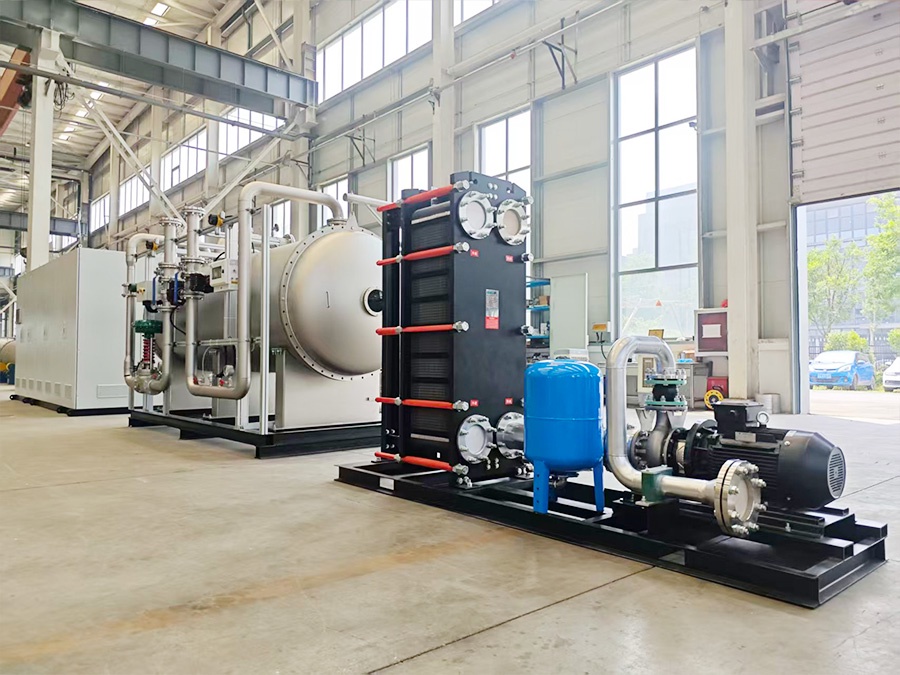

Oxygen-fed Ozone Generator
Adopting high-performance enamel discharge tube, our equipment features long service life, strong anti-interference capacity and low failure rate.

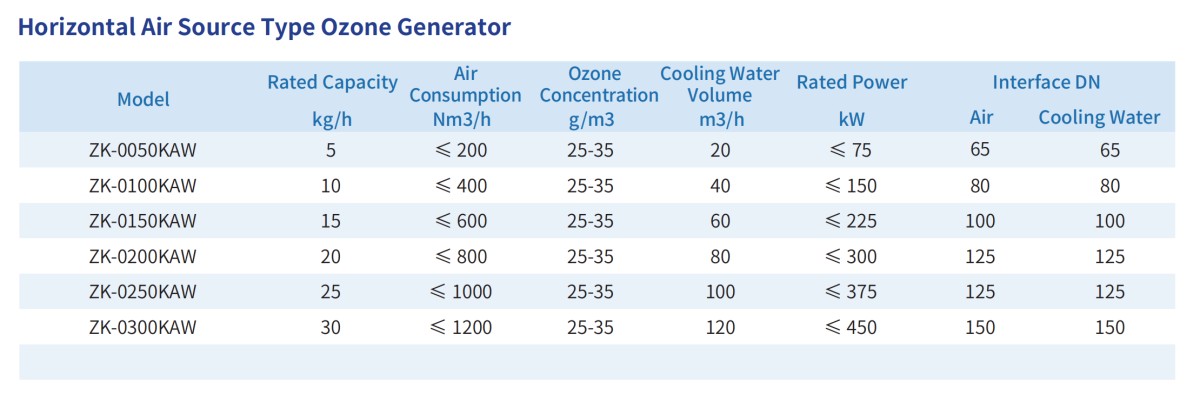

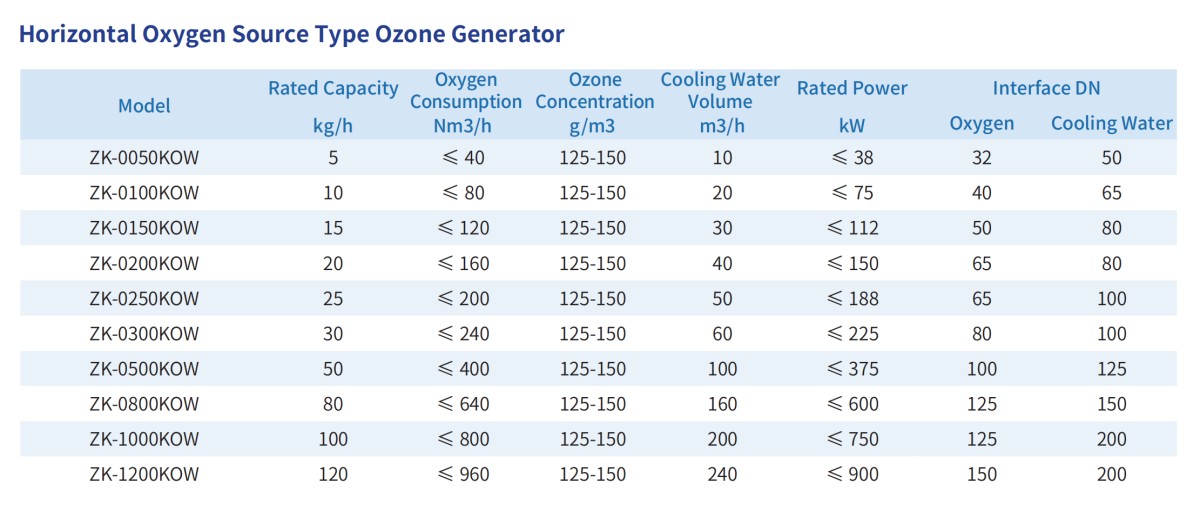

Key Specifications
Product Description

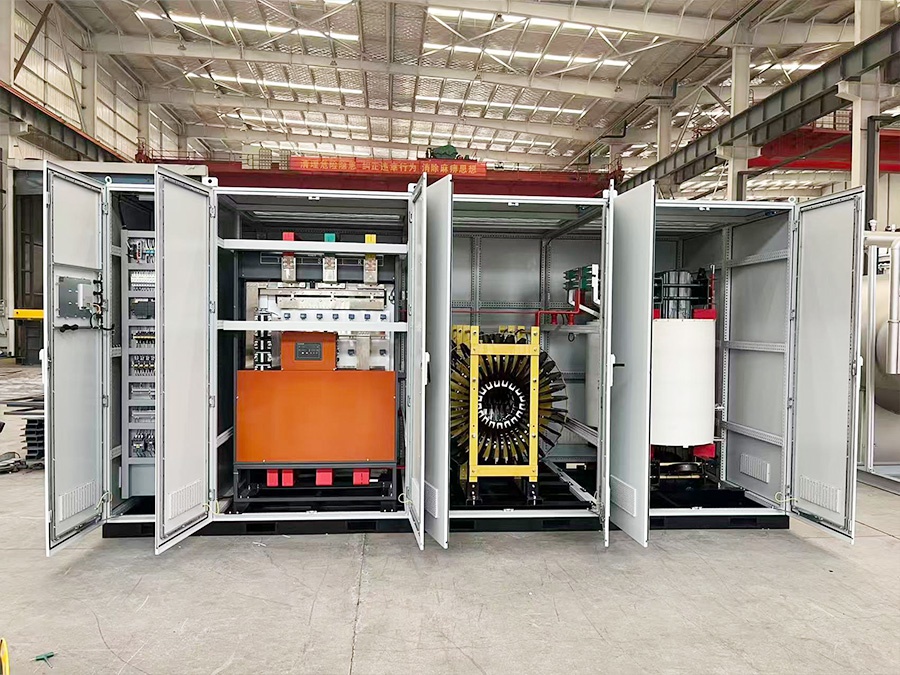

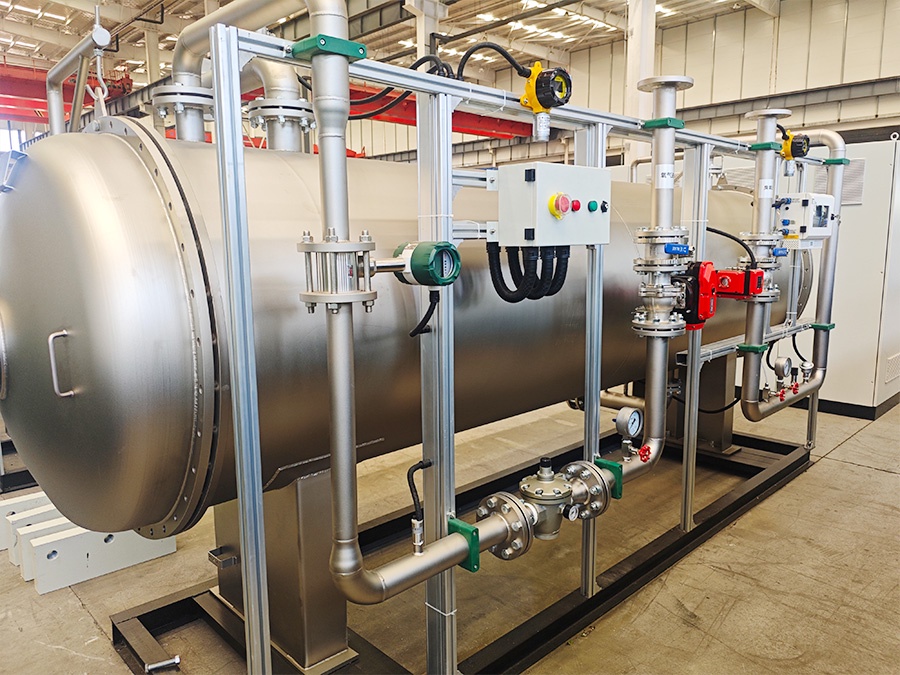

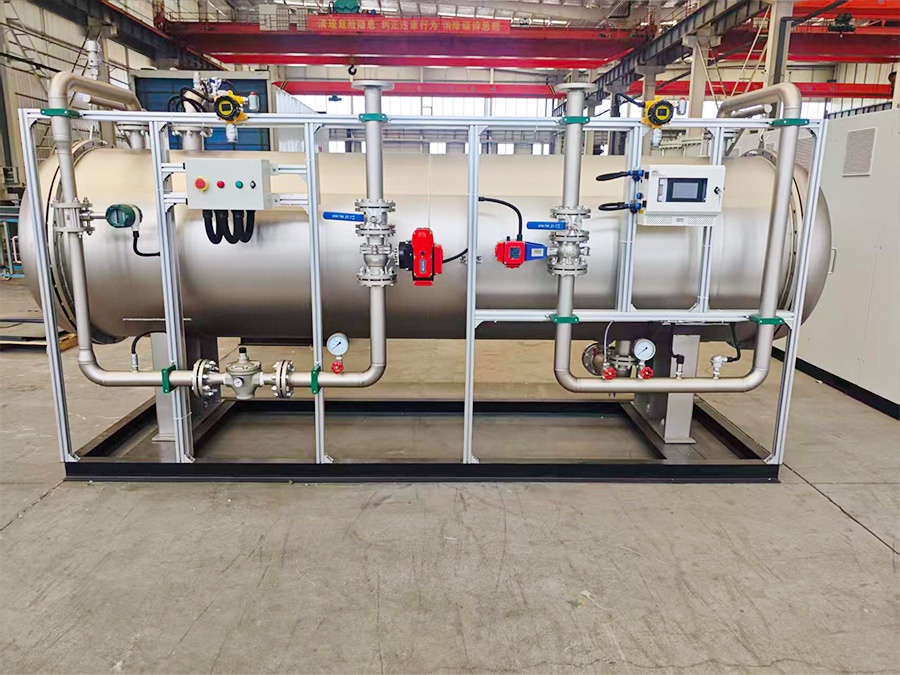

Horizontal ozone generators are mainly composed of ozone-specific power supply systems, ozone generation systems, automatic control systems, cooling systems, and online instruments. They adopt DBD (Dielectric Barrier Discharge) technology, with discharge units arranged horizontally. The main unit and power supply base are integrated as one, resulting in a compact structure. The entire machine is pre-installed with pipelines and instruments at the factory, reducing on-site installation workload. They support 7×24 hours of continuous stable operation and are the preferred ozone core equipment for large-scale water treatment, wastewater oxidation, and flue gas denitrification projects.
General Requirements for Environmental Conditions
Operating ambient temperature:-5 ~ +35 °C
Storage ambient temperature:-25 ~ +55 °C
Ambient humidity: ≤ 85%
Altitude: ≤2000 m
Dust:<5 mg/Nm³
Toxic gas and vapor: none
General Requirements for Air Sources
Air supply pressure: 2-4 bar
Air supply temperature (Min./Max.) 5 ~ 30 °C
Dew point: ≤ -60 °C (oxygen source)
Dew point at atmospheric pressure (absolute): < -55 (air source)
Total hydrocarbons (expressed as CH₄): < 20 ppm
Freon or organic solvents: none
Application Fields

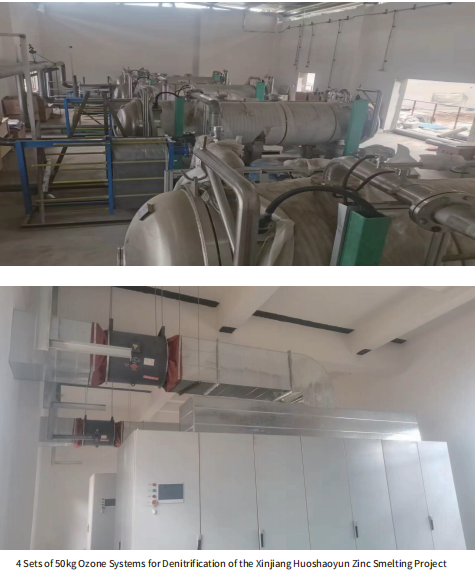

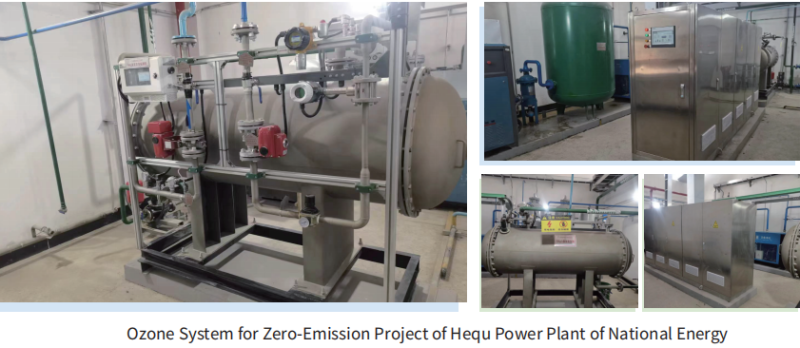

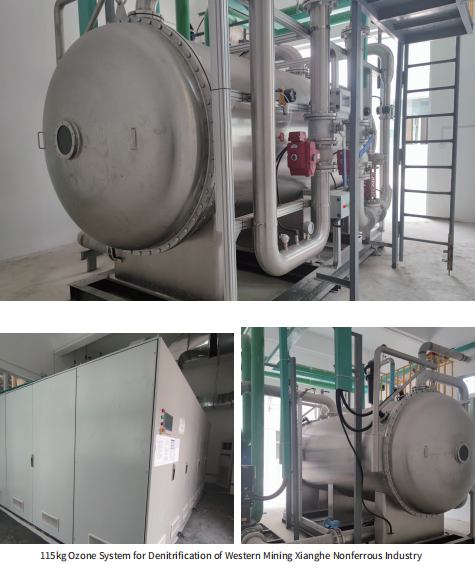

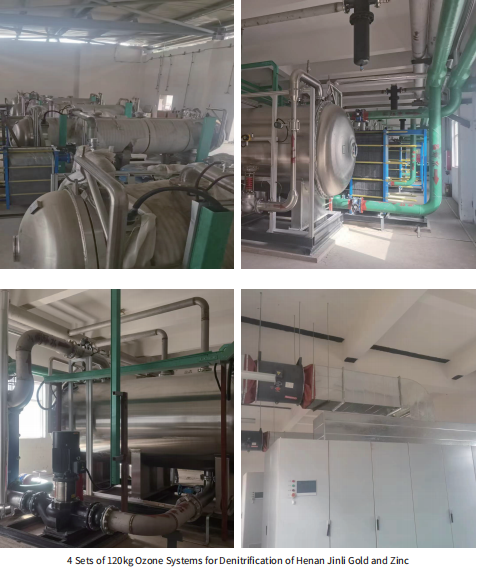

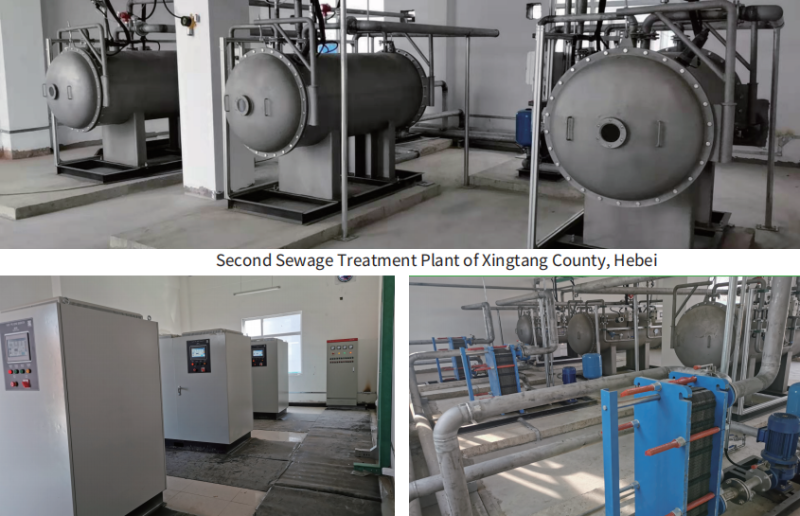

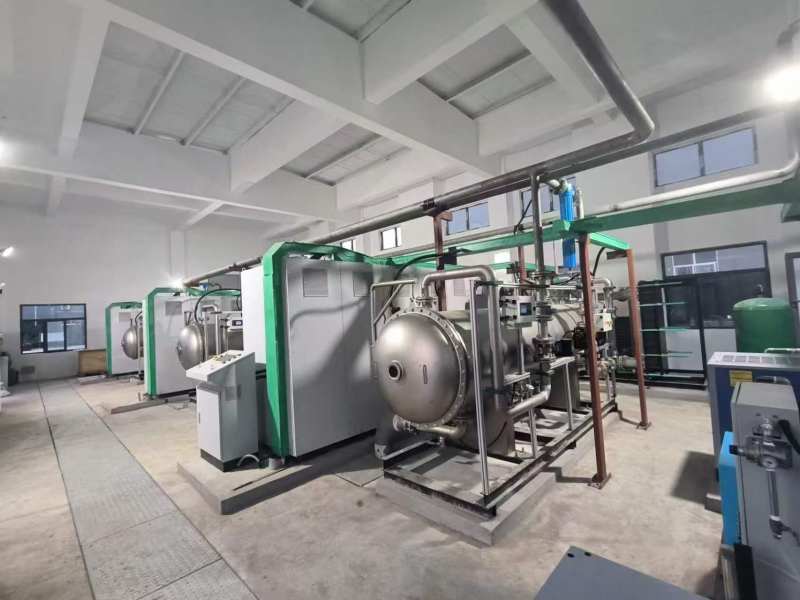

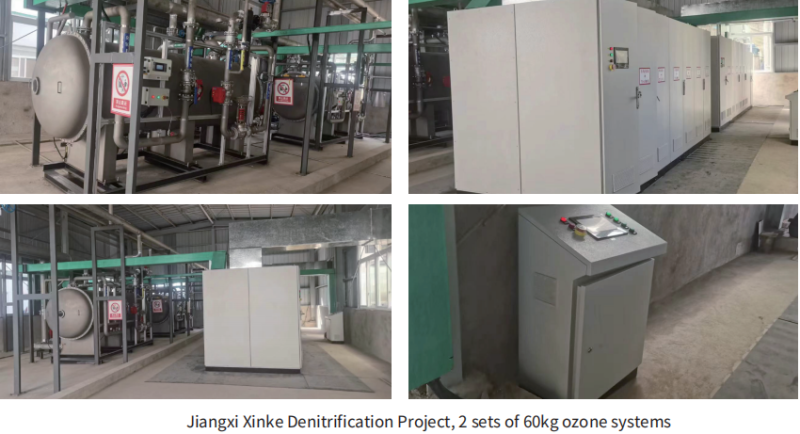

Project Cases

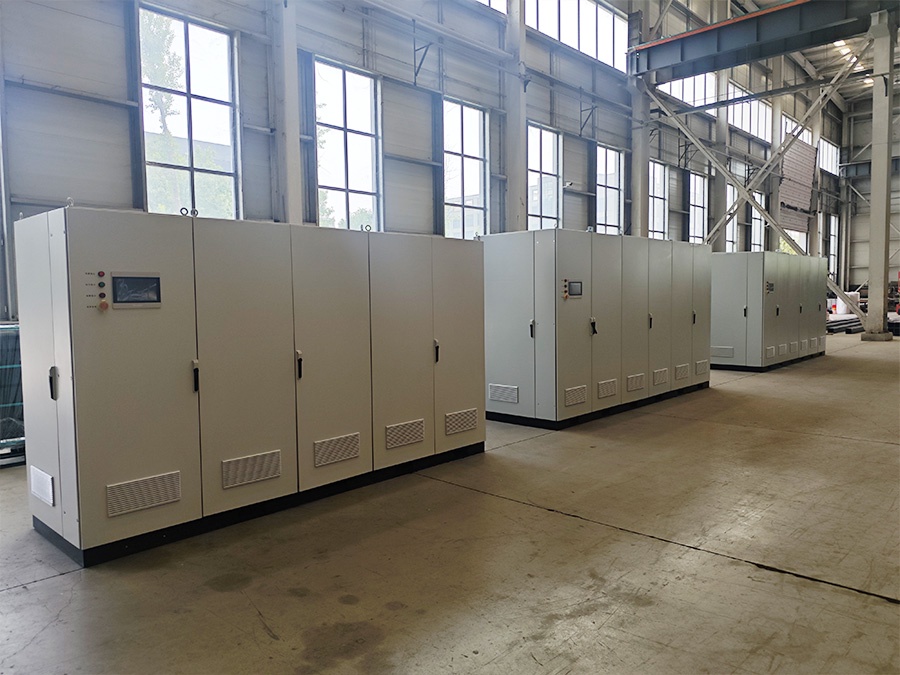

Factory Showcase
Certifications
FAQ
Equipped with intelligent PLC touch screen, automatic operation and one-key start/stop, simple for workers to use. We provide English operation manuals, installation videos and online technical guidance.
The machine only needs standard power supply, water source and ventilation environment. It is floor-mounted, easy to install and no complicated construction is required.
Complete supporting accessories are optional: oxygen generator, air dryer, filter system, tail gas destructor, PLC intelligent control cabinet and remote monitoring module.
Yes. We can customize ozone output, concentration, cabinet size, control mode and fully automatic system solutions according to your water flow, water quality and on-site environment.
It is widely applied in municipal tap water disinfection, industrial wastewater treatment, swimming pool water circulation, aquaculture water purification, printing and dyeing wastewater, reclaimed water reuse and chemical plant sterilization.
Yes. All industrial-grade models support 24/7 continuous stable operation. Each machine passes strict aging tests before delivery to ensure low failure rate for long-term operation.
Our ozone generator adopts high-efficiency enamel dielectric discharge technology. It converts oxygen/air into high-purity ozone through high-voltage ionization, with stable output, low attenuation and long continuous working life.
We support full-range specifications from small 10g/h to large industrial tonnage models. Custom ozone concentration and output are available for different project demands.
Standard models adopt water cooling, which ensures more stable ozone output and better heat dissipation for 24-hour continuous operation. Air cooling type is optional for small machines.
Yes. We can provide detailed English product datasheets, parameter lists, project cases and customized quotation according to your actual needs.
Standard models have stock and can be delivered quickly. Customized models take 7-15 working days according to different configurations.
Our ozone generators have passed CE certification and meet EU industrial safety standards. We support third-party inspection for customer projects.
We provide 1-year full machine warranty and lifelong technical support. Core components enjoy longer service guarantee. Damaged parts can be provided with preferential replacement.
We provide 24-hour online after-sales service. Most software and operation problems can be solved remotely. For hardware problems, we will provide replacement parts and professional technical guidance.
