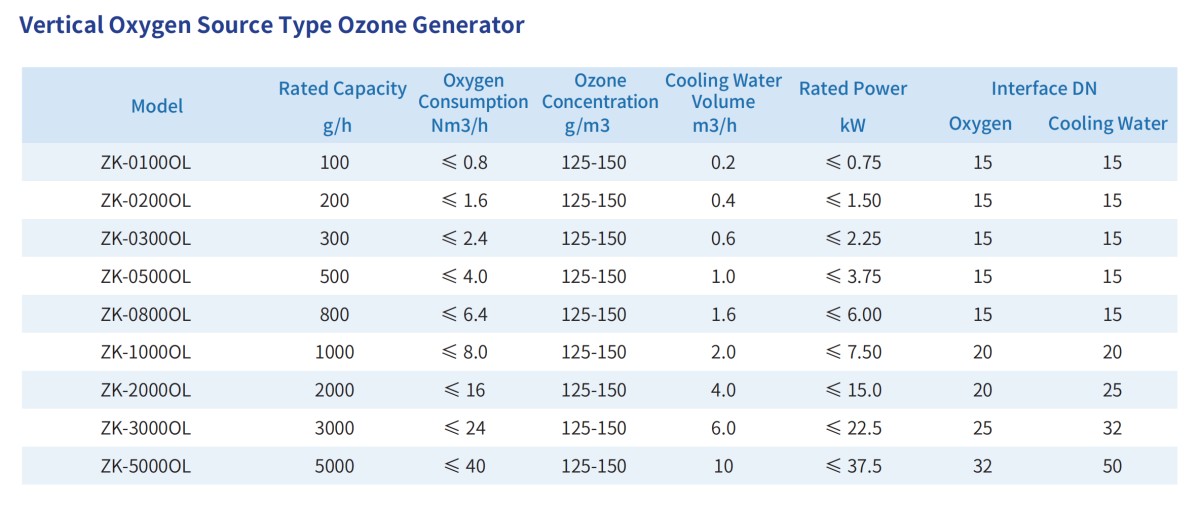

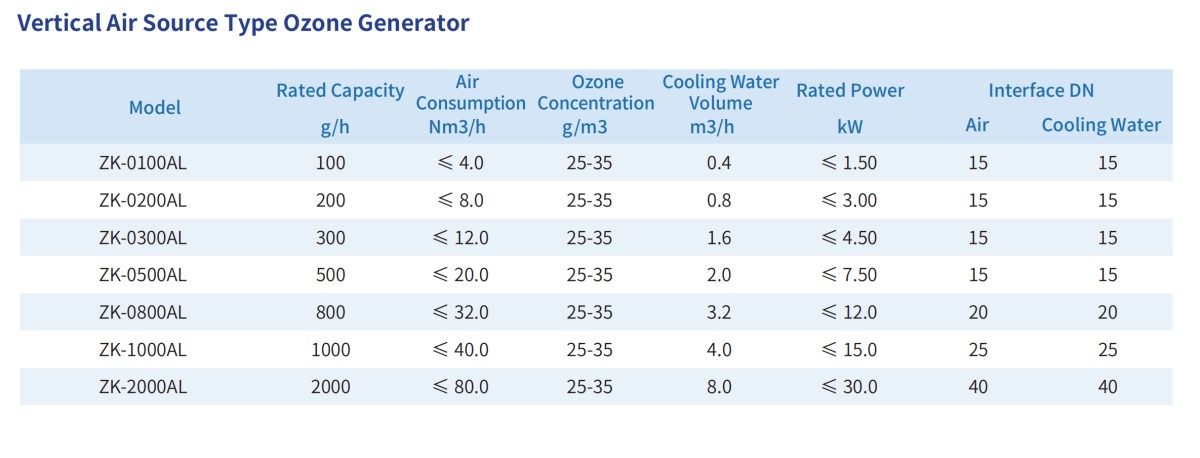

Key Specifications
Product Description

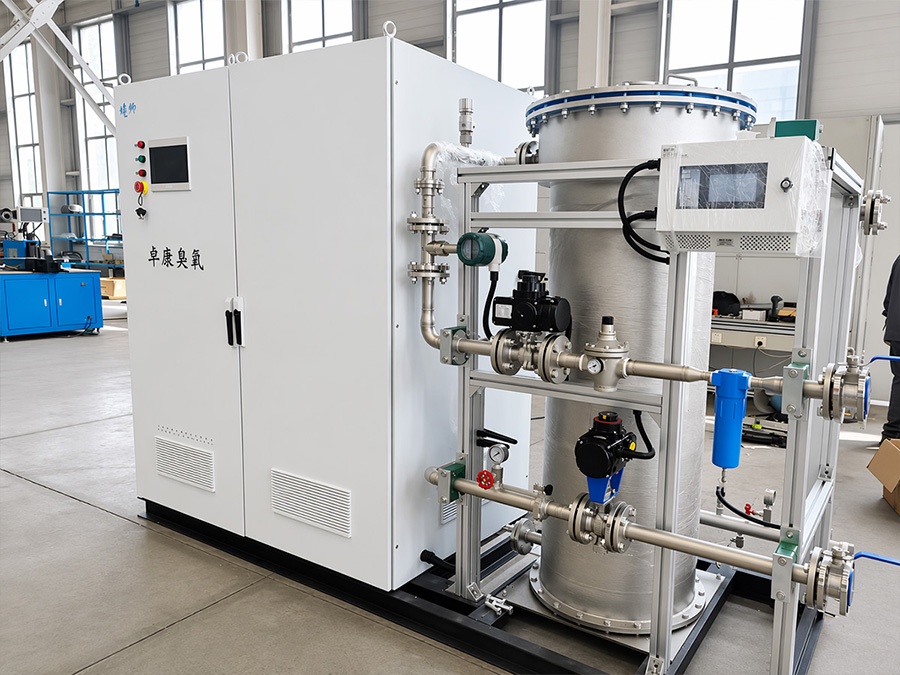

The vertical ozone generator is an integrated high-efficiency industrial ozone unit adopting dielectric barrier discharge technology. Using air or high-purity oxygen as feed gas, it generates high-concentration ozone through high-voltage ionization. It consists of a special ozone power supply system, ozone generation system, automatic PLC control system, cooling system and on-line instrumentation system. The high-frequency high-voltage power supply has multi-protection functions to adjust discharge power stably. The sealed discharge chamber produces ozone reliably with strong adaptability. The touch HMI supports unattended operation, remote linkage, real-time parameter monitoring and fault alarm. Water/air cooling controls chamber temperature to avoid ozone decomposition. On-line sensors continuously monitor pressure, temperature, gas flow and ozone concentration. Featuring compact footprint, stable operation and strong oxidation performance, it is widely used for flue gas denitrification, water treatment, chemical oxidation, food sterilization and other industrial applications.
General Requirements for Environmental Conditions
Operating ambient temperature:-5...+35°C
Storage ambient temperature:-25...+55°C
Ambient humidity: < 85%
Altitude:≤2000 m
Dust: < 5mg/Nm3
Toxic gas and vapor: none
General Requirements for Air Sources
Air supply pressure: 2-4bar
Air supply temperature (Min. /Max.) 5-30°C
Dew point at atmospheric pressure (absolute): < -55 (air source) ≤ -60 (oxygen source)
Total hydrocarbons (expressed as CH): ＜ 20 ppm
Freon or organic solvents: none
Application Fields

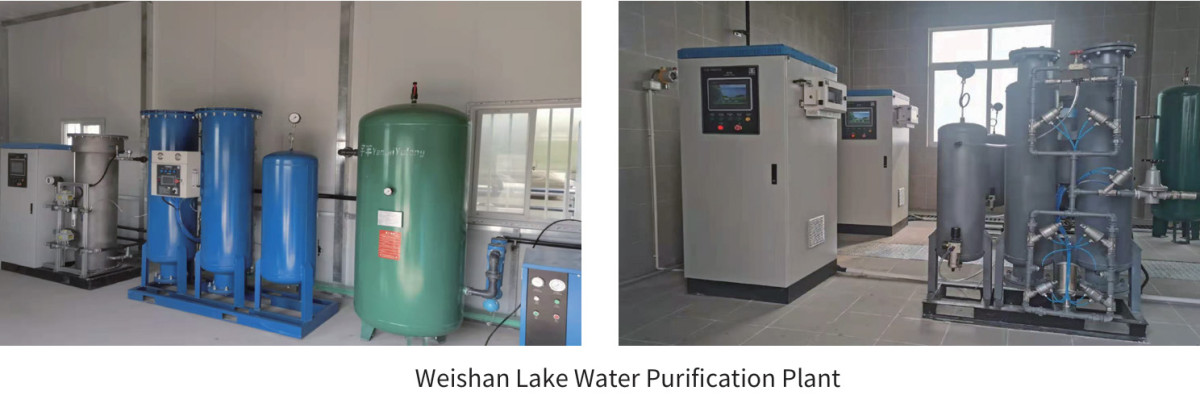

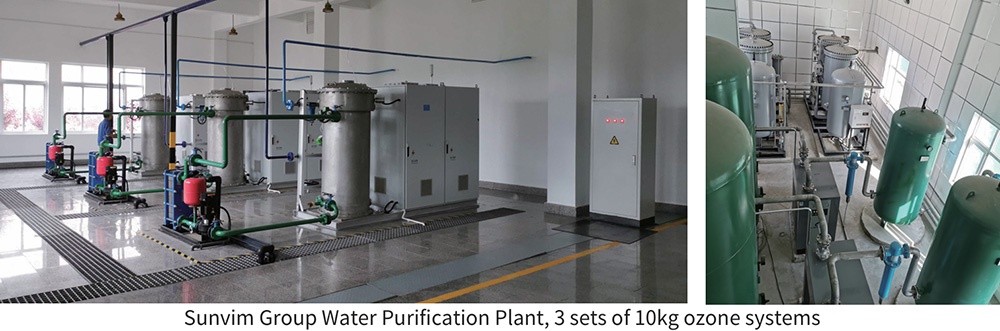

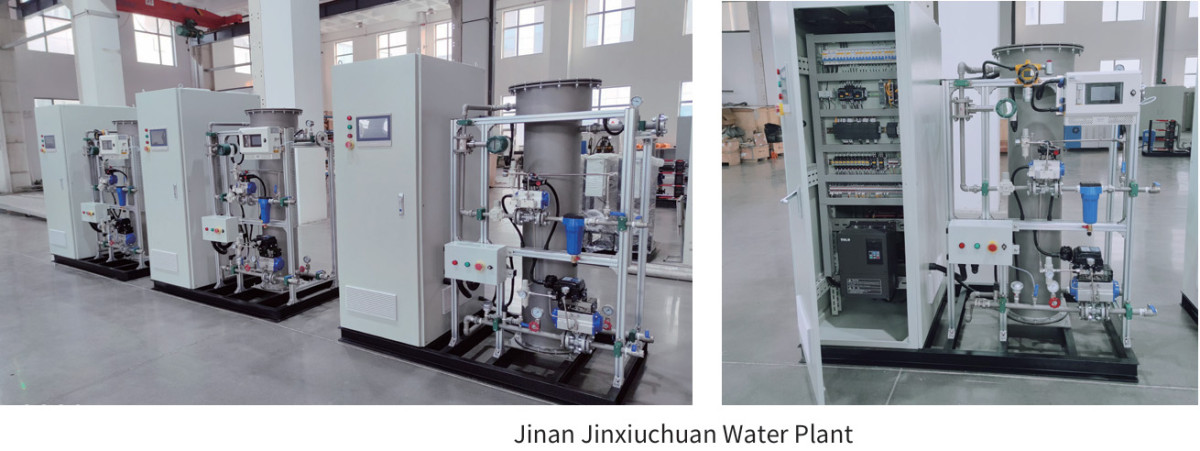

Project Cases

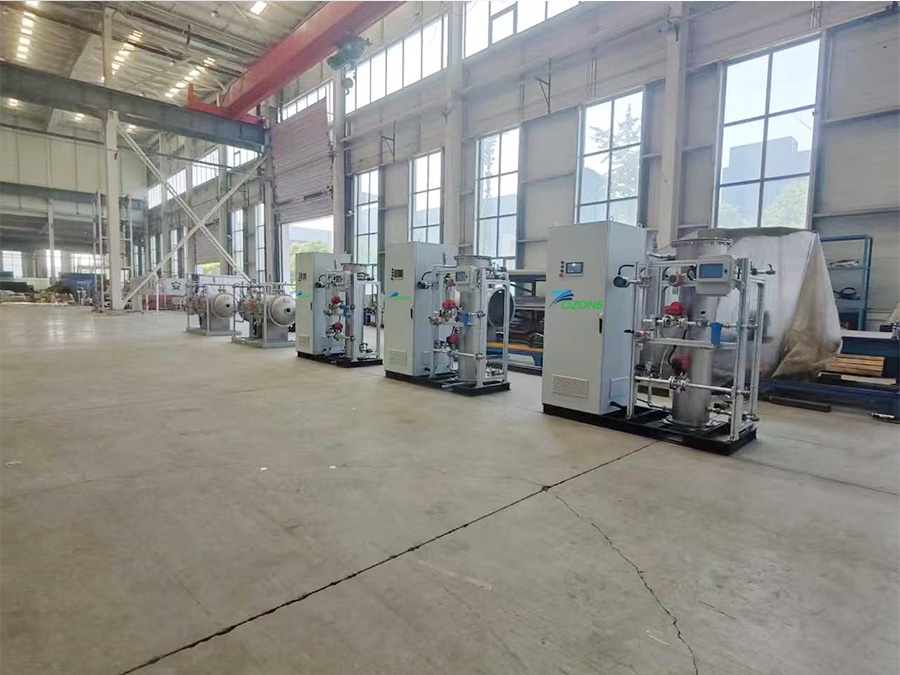

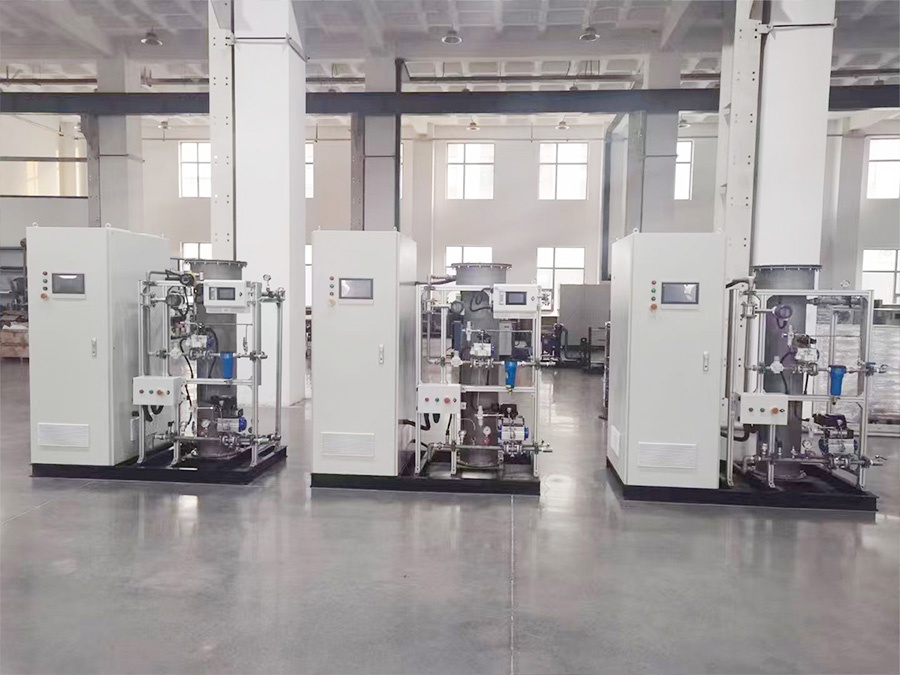

Factory Showcase
Certifications
FAQ
Equipped with intelligent PLC touch screen, automatic operation and one-key start/stop, simple for workers to use. We provide English operation manuals, installation videos and online technical guidance.
The machine only needs standard power supply, water source and ventilation environment. It is floor-mounted, easy to install and no complicated construction is required.
Complete supporting accessories are optional: oxygen generator, air dryer, filter system, tail gas destructor, PLC intelligent control cabinet and remote monitoring module.
Yes. We can customize ozone output, concentration, cabinet size, control mode and fully automatic system solutions according to your water flow, water quality and on-site environment.
It is widely applied in municipal tap water disinfection, industrial wastewater treatment, swimming pool water circulation, aquaculture water purification, printing and dyeing wastewater, reclaimed water reuse and chemical plant sterilization.
Yes. All industrial-grade models support 24/7 continuous stable operation. Each machine passes strict aging tests before delivery to ensure low failure rate for long-term operation.
Our ozone generator adopts high-efficiency enamel dielectric discharge technology. It converts oxygen/air into high-purity ozone through high-voltage ionization, with stable output, low attenuation and long continuous working life.
We support full-range specifications from small 10g/h to large industrial tonnage models. Custom ozone concentration and output are available for different project demands.
Standard models adopt water cooling, which ensures more stable ozone output and better heat dissipation for 24-hour continuous operation. Air cooling type is optional for small machines.
Yes. We can provide detailed English product datasheets, parameter lists, project cases and customized quotation according to your actual needs.
Standard models have stock and can be delivered quickly. Customized models take 7-15 working days according to different configurations.
Our ozone generators have passed CE certification and meet EU industrial safety standards. We support third-party inspection for customer projects.
We provide 1-year full machine warranty and lifelong technical support. Core components enjoy longer service guarantee. Damaged parts can be provided with preferential replacement.
We provide 24-hour online after-sales service. Most software and operation problems can be solved remotely. For hardware problems, we will provide replacement parts and professional technical guidance.
